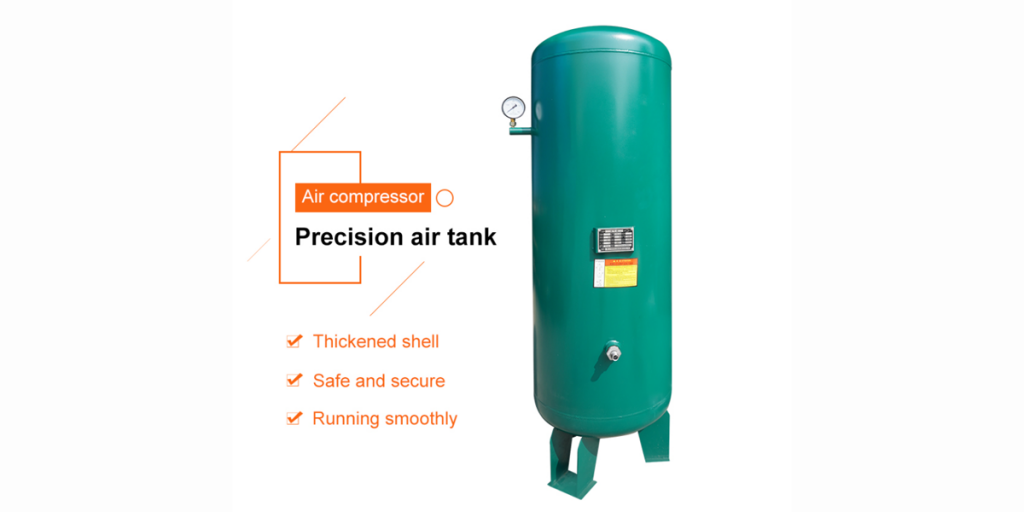

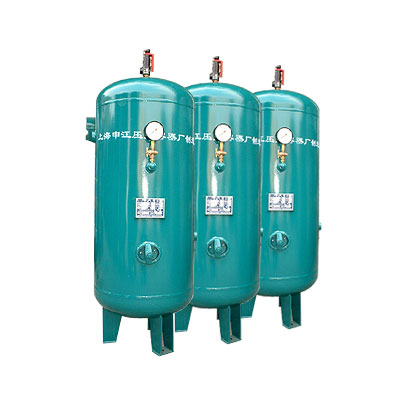

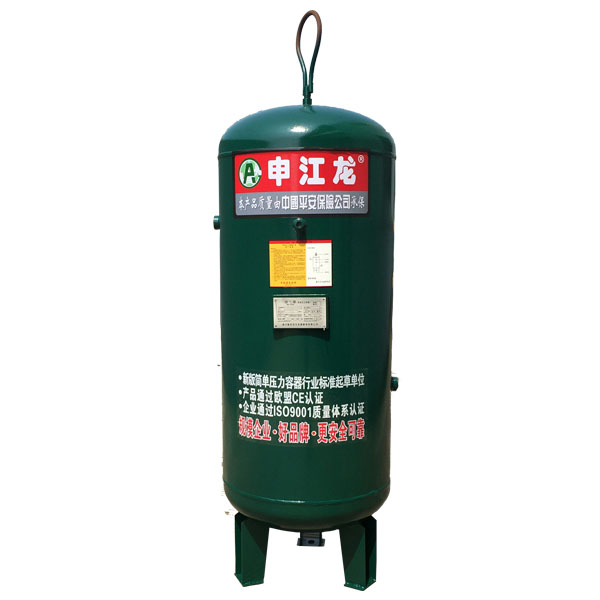

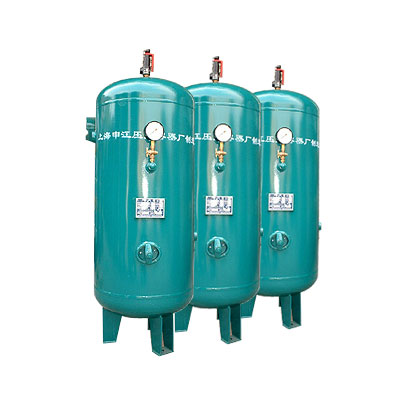

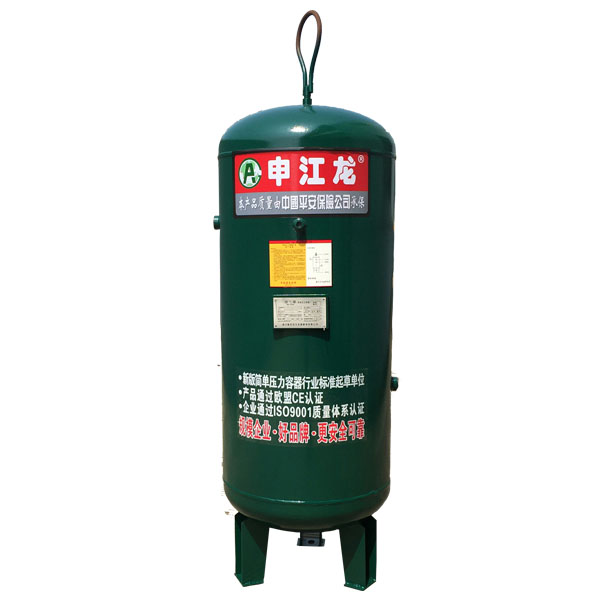

Air Tank

The main parameters:

Air flow: 0.3-40m³/min

Maximum working pressure: 0.8-1.6Mpa

Chat With Us Send E-mail

 Download File

Details
Technical Parameters
Aapplication
Cases
Enquire

Details

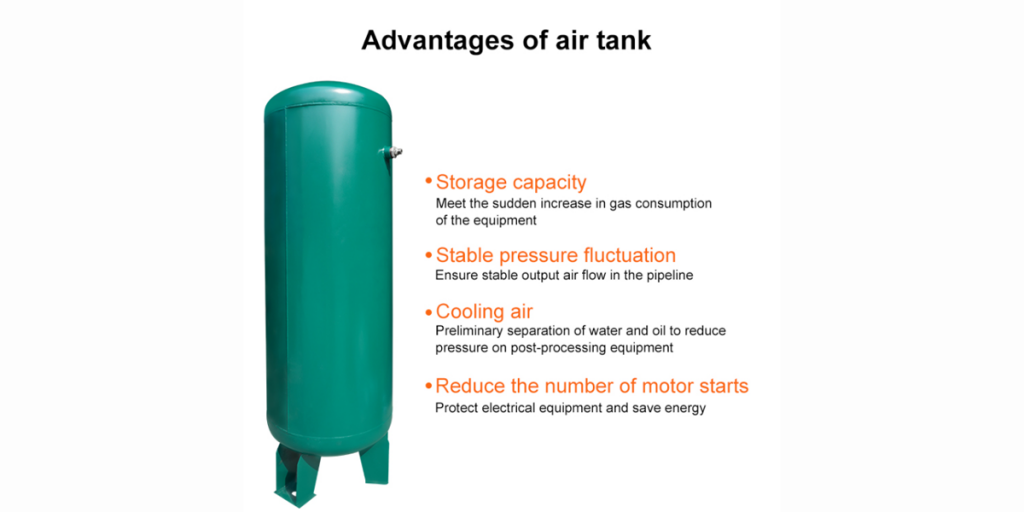

Air Tank Function

1.Energy storage(for emergency needs)
2.Stable air pressure
3.Ease pulse impact on gas equipment
4.To precipitate water ,grease&dust in the air
5.Improve the continuity and stability of the equipment for the gas output
6.Reduce the frequent start of the compressor,extend its life

Technical Parameters

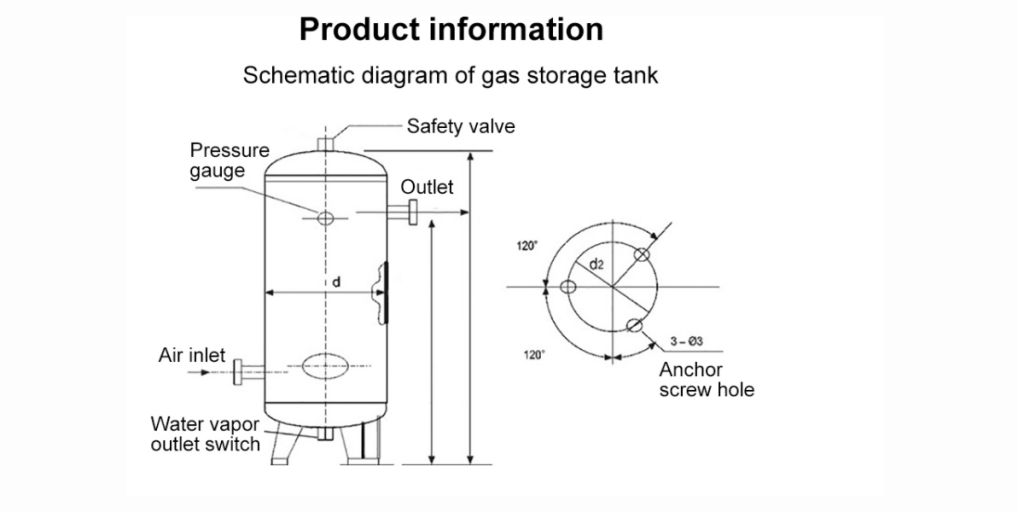

Designed temperature	Total container height	Container inner diameter	Air inlet			Air outlet			Support		Relief valve connector	Drainage valve connector
			H2	DN	Thread type	H3	DN	Thread type	D	d
110	1594	550	642	50	Rp11/2	1242	50	Rp11/2	400	20	RP3/4	RP1/2
	1594		642			1242
	1598		644			1244
	1598		644			1244
110	1905	700	680	65	Rp11/2	1550	65	Rp11/2	490	24	RP3/4	RP1/2
	1907		681			1551
	1909		682			1552
	1907		681			1551
110	2325	800	690	65	Rp11/2	1920	65	Rp11/2	560	24	R1	RP1/2
	2327		691			1921
	2331		693			1923
	2327		691			1921
110	2562	900	751	65	Rp2	2116	65	Rp2	630	24	R1	RP1/2
	2564		752			2117
	2562		751			2116
	2566		753			2118
110	2782	1000	761	80	Rp2	2321	80	Rp2	700	24	RP11/4	RP1/2
	2786		763			2323
	2788		764			2324
	2786		763			2323
110	3302	1000	761	80		2841	80		700	24	RP11/4	RP1/2
	3306		763			2843
	3302		761			2841
110	2836	1100	788	80		2348	80		770	24	RP11/4	RP1/2
110	2944	1200	872	80		2432	80		906	24	RP11/2	RP3/4
	2946		873			2433
	2946		873			2433
	2980		890			2450
110	3036	1400	913	100		2473	100		1050	24	RP11/2	RP3/4
	3040		915			2475
	3036		913			2473
	3040		915			2475
110	3726	1400	913	100		1550	100		1050	24	RP2	RP3/4
	3730		915			1551
	3726		913			1552
	3730		915			1551
110	4346	1400	913	125		3633	125		1050	24	RP2	RP3/4
	4350		915			3635
	4346		913			3633
	4350		915			3635
110	3154	2000	1082	125		2362	125		1500	32	RP2	RP3/4
	3158		1084			2364
	3194		1102			2382
	3198		1104			2384
110	3754	2000	1082	150		2962	150		1500	32	RP21/2	RP3/4
	3758		1084			2964
	3794		1102			2982
	3798		1104			2984
110	4354	2000	1082	150		3562	150		1500	32	RP21/2	RP3/4
	4358		1084			3564
	4394		1102			3582
	4398		1104			2584
110	4531	2200	1208	150		3618	150		1650	32	RP21/2	R1
	4565		1225			3635
	4569		1227			3637
	4577		1231			3641
110	5248	2400	1349	200		4169	200		1800	32	RP3	R1
	5250		1350			4170
	5258		1354			4174
	5262		1356			4176
110	6148	2400	1349	200		5069	200		1800	32	RP3	R1
	6150		1350			5070
	6158		1354			5074
	6162		1356			5076
110	6708	2500	1374	200		5604	200		1875	36	RP3	R1
	6714		1377			5607
	6718		1379			5609
110	6722	2600	1381	200		5611	200		1875	36	RP3	R1
	8888		1374			7414
	8894		1377			7417
	8898		1379			7419
