Cutting-edge core technology achieves the lowest cost of air compression

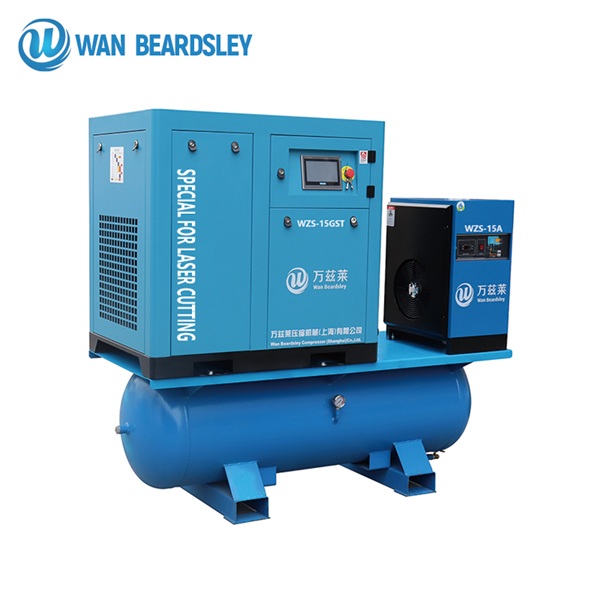

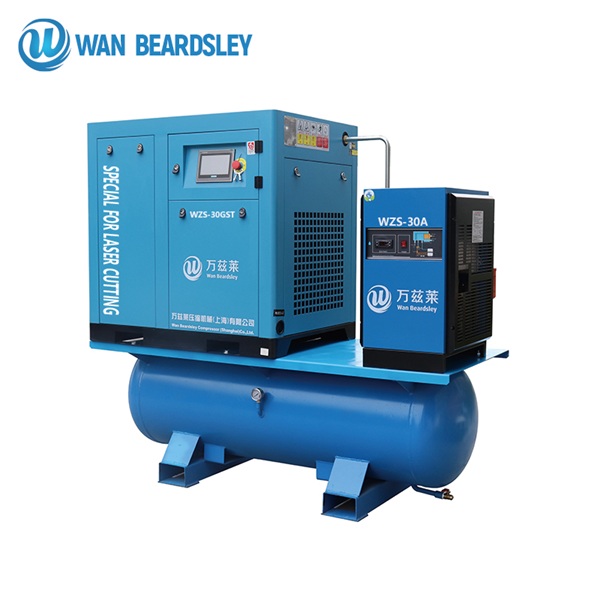

Compressor with Tank and Dryer for Laser Cutting (GST)

The main parameters:

Output power: 7.5-22kw

Air flow: 0.4-3.6m3/min

Maximum working pressure: 1.65Mpa

Details

Stainless steel pipe

The stainless steel pipeline technology is adopted in compressor, the structure is firm, the reliability is high, and the rust phenomenon in the pipeline is effectively prevented from occurring.

Screw air compressor group

Low-tip speed guide design greatly improves volumetric efficiency.

Air storage tank

Large-capacity air storage tank, safe and reliable tank, so you can use worry-free.

Intelligent microcomputer contorl system

Simple operation, Chinese/English switchable, consumables usage hours reminder, and interlock and remote monitoring functions for users to choose.

Multi-stage high efficiency filter

AFilter most of the dust and oil mist, the end air outlet quality is good, the dust content <0.01μm, oil content <0.01ppm.

High temperature type refrigerated air dryer

High temperature type refrigerated air dryer is used to eliminate the effect of moisture in the air on air quality.

List of ingress protection:

SOLID OBJECT MOISTURE
1Protected against a solid object greater than 50mm such as a hand.1Protected against vertical falling drops of water. Limited ingress permitted.
2Protected against a solid object greater than 12.5mm such as a finger.2Protected against vertical falling drops of water with enclosure tilted up to 15 degrees from the vertical.Limited ingress permitted.
3Protected against a sold object greater than 2.5mm such as a screwdriver.3Protected against sprays of water up to 60 degrees from the vertical.Limited ingress permitted.
4Protected against a solid object greater than 1mm such as a wire.4Protected against water splashes from all directions. Limited ingress permitted.
5Dust protected.Limited ingress of dust permitted.Will not interfere with operation of the equipment.5Protected against jets of water.Limited ingress permitted.
6Dust tight.No ingress of dust.6Protected against powerful jets of water.Limited ingress permitted.
  7Watertight against the effects of immersion in water between 15cm and 1m for 30 minutes.
  8Watertight against the effects of immersion in water under pressure for long periods.
Ingress Protection
IP65Dust tight.No ingress of dust.
Protected against jets of water.Limited ingress permitted.
IP54Dust protected.Limited ingress of dust permitted.Will not interfere with operation of the equipment.
Protected against water splashes from all directions. Limited ingress permitted.
IP23Protected against a solid object greater than 12.5mm such as a finger.
Protected against sprays of water up to 60 degrees from the vertical.Limited ingress permitted.

Technical Parameters

Model kW V/Hz Bar  m3/min Bsp(inch)  L×W×H(mm) Kg

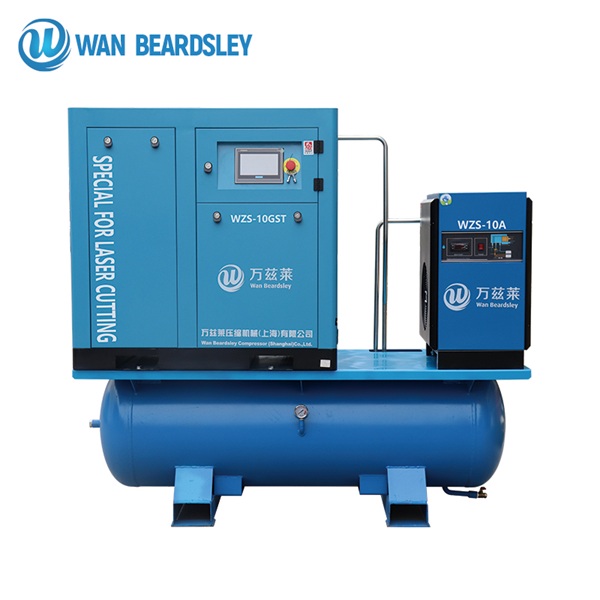

WZS-10GST 7.5 380/50 8.5 1.1 RC3/4 1850X800X1800 480
10.5 1.0
13.5 0.8
16.5 0.4
WZS-11GS 11 380/50 16.5 0.84 RC1 1300X860X1030 380
WZS-11GST 11 380/50 8.5 0.7 RC1 1850X800X1800 600
10.5 1.4
13.5 1.2
16.5 0.84
WZS-15GS 15 380/50 16.5 1.4 RC1 1300X860X1030 480
WZS-15GST 15 380/50 8.5 2.4 RC1 1850X800X1850 650
10.5 2.1
13.5 1.8
16.5 1.4
WZS-22GS 22 380/50 16.5 2.2 RC1 1/4 1380X850X1150 620
WZS-22GST 22 380/50 8.5 3.6 RC1 1/4 1850X800X1850 680
10.5 3.0
13.5 2.3
16.5 2.2
WZS-30GS 30 380/50 16.5 2.93 RC1 1/4 1380X850X1150 680
WZS-37GS 37 380/50 16.5 3.63 RC1 1/2 1600X1000X1420 850
WZS-45GS 45 380/50 16.5 4.63 RC1 1/2 1600X1000X1420 880
WZS-55GS 55 380/50 16.5 5.70 RC2 1800X1260X1550 1350
WZS-75GS 75 380/50 16.5 7.81 RC2 2150X1300X1700 1650
WZS-90GS 90 380/50 16.5 9.64 RC2 2150X1300X1700 1950
WZS-110GS 110 380/50 16.5 11.58 DN65 2550X1650X1850 2600
WZS-132GS 132 380/50 16.5 14.62 DN80 2550X1650X1850 2880
WZS-160GS 160 380/50 16.5 17.18 DN80 2950X1800X1850 3200
