Cutting-edge core technology achieves the lowest cost of air compression
The main parameters:
Output power: 5.5-250kw
Air flow: 0.2-44.78m3/min
Maximum working pressure: 1.25Mpa
Conforms to ISO 8573-1:2001 levels. The standard specifies the food and beverage, pharmaceutical, textile and electronics industries.
Dual discharge seals and precision machined rotors with UltraCoat protection ensure smooth operation.
Easy-to-maintain microprocessor controller provides continuous monitoring and on-board diagnostics to minimize power consumption.
Industry-leading Ultra Coolant provides up to 8,000 hours of lubricant life, eight times longer than conventional lubricants.
Long-life components are designed to withstand maximum ambient temperatures of 46ºC with optimized compressed air solutions and designs that meet our customers' needs.
Zero risk of contamination to your final product; thanks to trusted, world-class suppliers and the high quality materials used, robustness and reliability for harsh environments.
| Ingress Protection | |
| IP65 | Dust tight.No ingress of dust. Protected against jets of water.Limited ingress permitted. |
| IP54 | Dust protected.Limited ingress of dust permitted.Will not interfere with operation of the equipment. Protected against water splashes from all directions. Limited ingress permitted. |
| IP23 | Protected against a solid object greater than 12.5mm such as a finger. Protected against sprays of water up to 60 degrees from the vertical.Limited ingress permitted. |
|
Model |
Maximum working pressure |
Capacity(FAD)* | Installed motor power |
Dimensions (mm) |
Weight | |||||
| 50 Hz | 60 Hz | |||||||||
| bar(g) | psig | m³/min | cfm | m³/min | cfm | KW | hp | L*W*H | kg | |
|
WZS-45 |
7 |
102 | 7.07 | 250 | 7.16 | 253 | 45 | 60 | 2100*1500*1790 | 2630 |
|
8 |
116 | 7.03 | 248 | 6.48 | 229 | 45 | 60 | 2100*1500*1790 | 2630 | |
| 10 | 145 | 5.51 | 194 | 5.37 | 189 | 45 | 60 | 2100*1500*1790 |
2630 |
|
|
WZS-55 |
7 | 102 | 9.37 | 331 | 8.87 | 313 | 45 | 75 | 2100*1500*1790 | 2650 |
| 8 | 116 | 9.34 | 330 | 8.25 | 291 | 55 | 75 | 2100*1500*1790 |
2650 |
|
| 10 | 145 | 8.11 | 286 | 7.10 | 251 | 55 | 75 | 2100*1500*1790 |
2650 |
|
|
WZS-75 |
7 | 102 | 12.72 | 449 | 12.60 | 445 | 75 | 100 | 2300*1600*1790 | 2850 |
| 8 | 116 | 12.69 | 448 | 11.69 | 413 | 75 | 100 | 2300*1600*1790 |
2850 |
|
| 10 | 145 | 11.58 | 409 | 10.43 | 368 | 75 | 100 | 2300*1600*1790 |
2850 |
|
|
WZS-90 |
7 | 102 | 13.66 | 482 | 14.62 | 516 | 90 | 120 | 2300*1600*1790 | 2850 |
|
8 |
116 | 13.64 | 482 | 14.60 | 515 | 90 | 120 | 2300*1600*1790 | 2850 | |
| 10 | 145 | 12.64 | 446 | 12.86 | 454 | 90 | 120 | 2300*1600*1790 |
2850 |
|
|
WZS-110 |
7 |
102 | 19.16 | 676 | 17.50 | 618 | 110 | 150 | 2800*1800*1860 | 3050 |
| 8 | 116 | 19.13 | 675 | 17.47 | 617 | 110 | 150 | 2800*1800*1860 |
3050 |
|
| 10 | 145 | 16.72 | 590 | 15.41 | 544 | 110 | 150 | 2800*1800*1860 |
3050 |
|
|
WZS-132 |
7 | 102 | 22.63 | 799 | 23.29 | 822 | 132 | 175 | 2800*1800*1860 | 3385 |
|
8 |
116 | 22.60 | 798 | 23.27 | 822 | 132 | 175 | 2800*1800*1860 |
3385 |
|
| 10 | 145 | 20.28 | 716 | 20.46 | 723 | 132 | 175 | 2800*1800*1860 |
3385 |
|
|

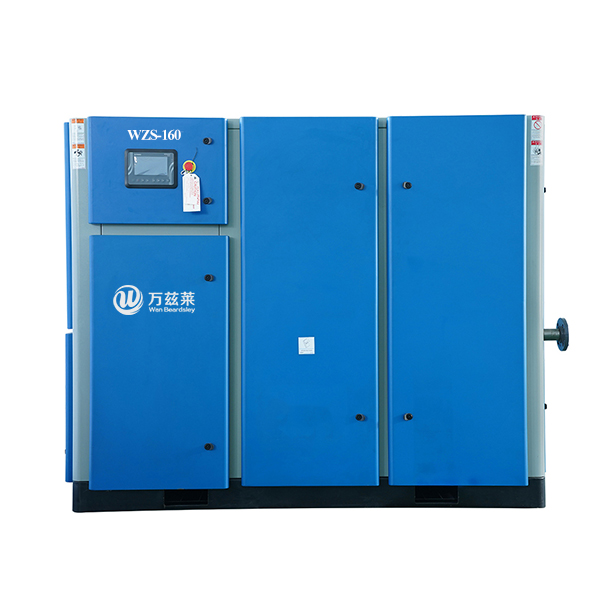

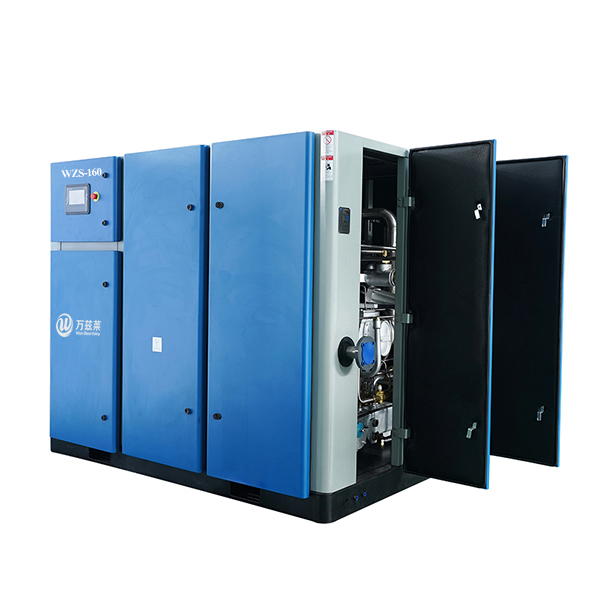

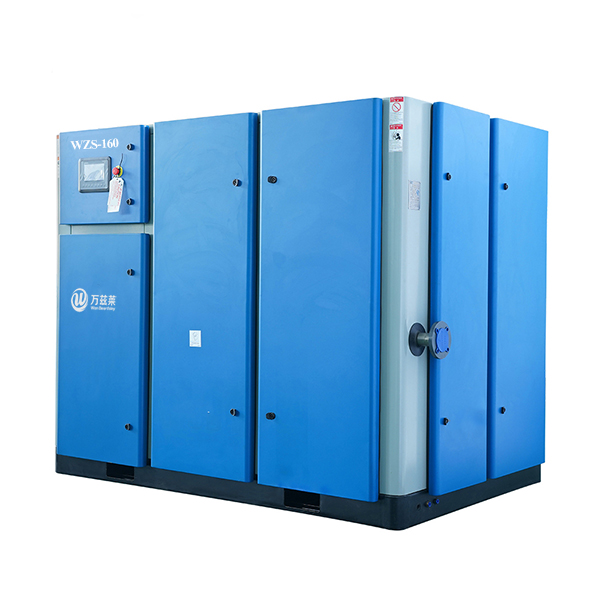

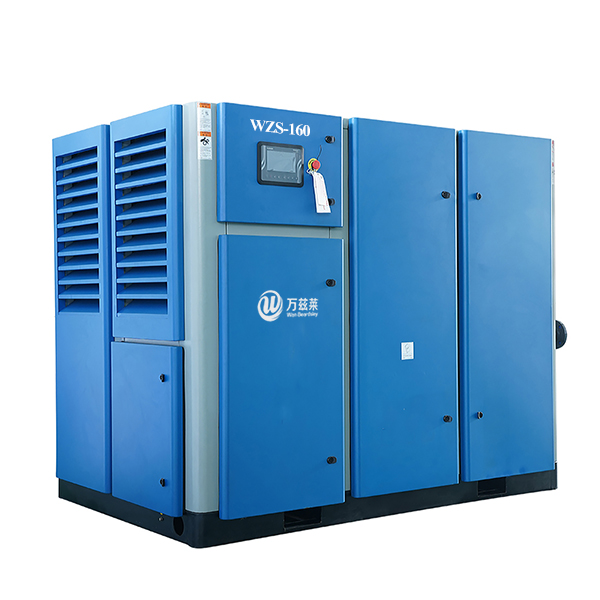

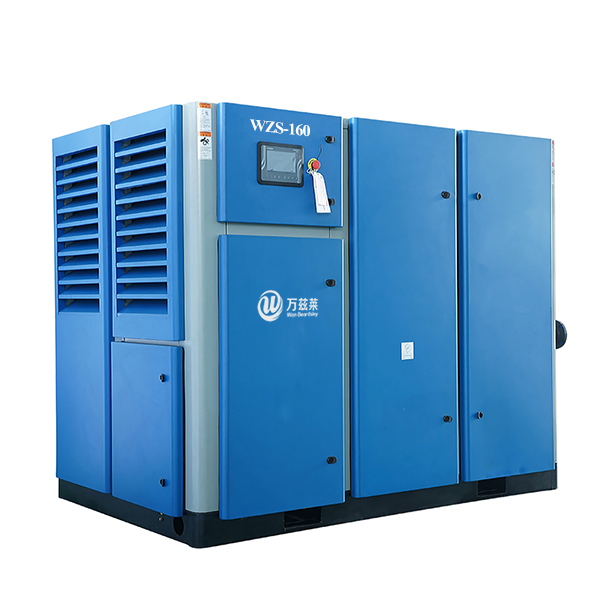

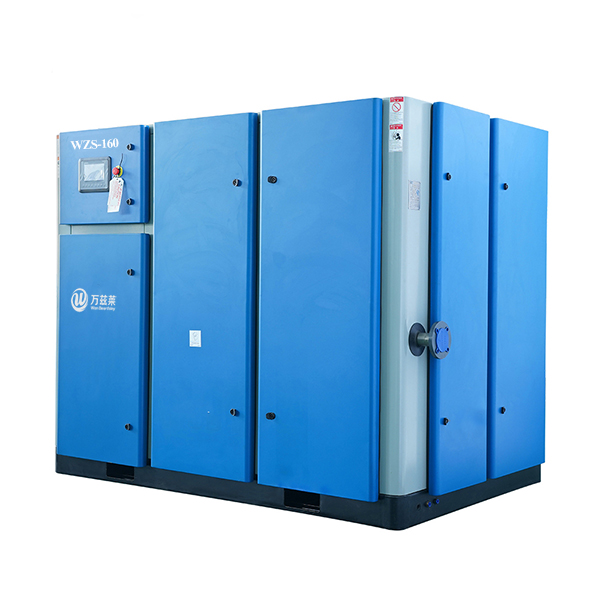

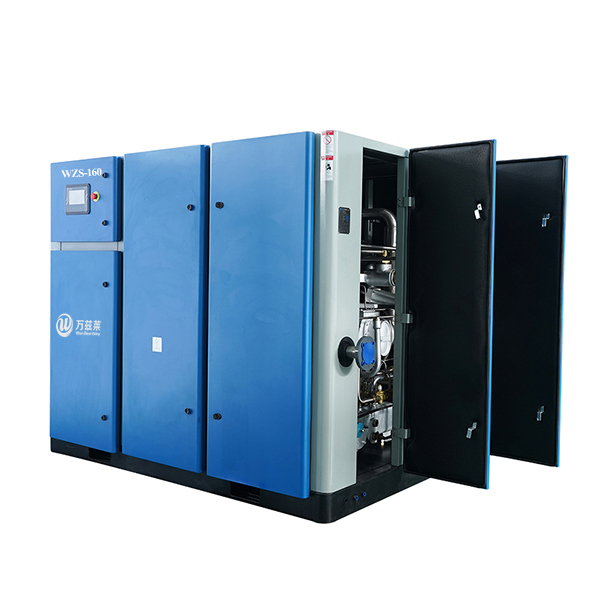

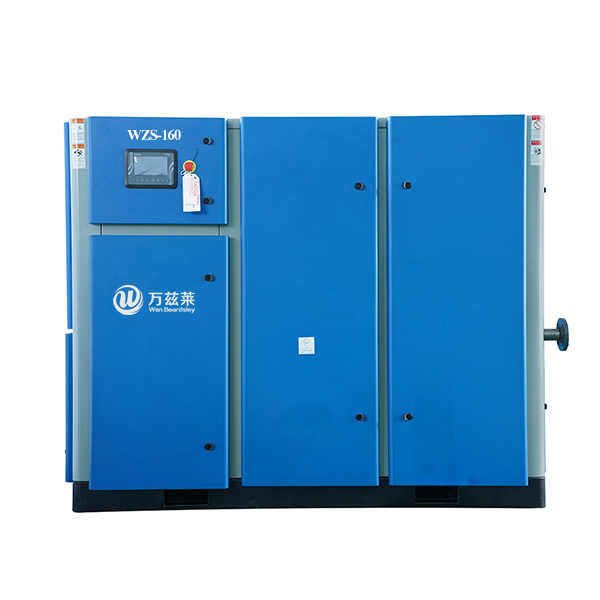

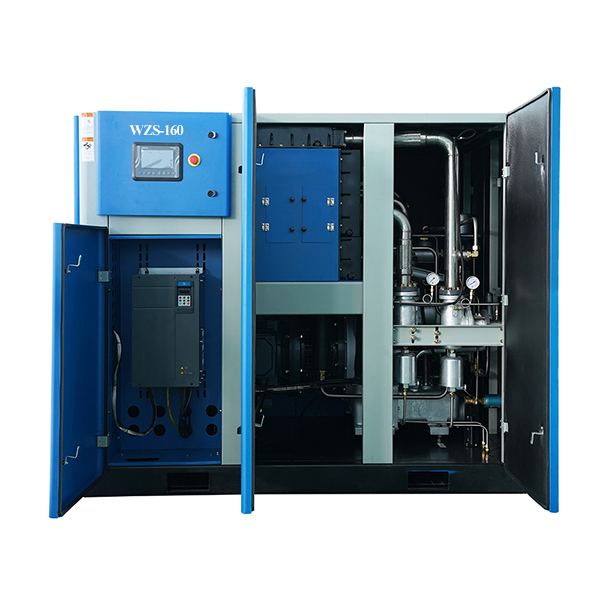

WZS-160 |
7 | 102 | 27.40 | 967 | 27.28 | 963 | 160 | 215 | 2800*1800*1860 | 3385 |
|
8 |
116 | 27.38 | 967 | 27.26 | 962 | 160 | 215 | 2800*1800*1860 |
3385 |
|
| 10 | 145 | 23.98 | 847 | 26.38 | 931 | 160 | 215 | 2800*1800*1860 |
3385 |
|
|
WZS-185 |
7 | 102 | 30.37 | 1072 | 31.20 | 1102 | 185 | 250 | 2800*1800*1860 | 3685 |
| 8 | 116 | 30.34 | 1071 | 31.04 | 1096 | 185 | 250 | 2800*1800*1860 |
3685 |
|
|
10 |
145 | 27.34 | 965 | 29.16 | 1030 | 185 | 250 | 2800*1800*1860 |
3685 |
|
|
WZS-250W |
7 |
102 | 43.71 | 1543 | 44.27 | 1563 | 250 | 350 | 3100*2150*2200 |
4950 |
|
8 |
116 | 43.66 | 1542 | 44.24 | 1562 | 250 | 350 | 3100*2150*2200 |
4950 |
|
|
10 |
145 | 39.16 | 1383 | 37.20 | 1314 | 250 | 350 | 3100*2150*2200 |
4950 |
|
|
WZS-315W |
7 | 102 | 52.44 | 1852 | 52.30 | 1847 | 315 | 425 | 3400*2400*2200 | 5150 |
|
8 |
116 | 52.40 | 1850 | 52.27 | 1846 | 315 | 425 | 3400*2400*2200 |
5150 |
|
| 10 | 145 | 47.53 | 1678 | 46.60 | 1645 | 315 | 425 | 3400*2400*2200 |
5150 |
|
|
WZS-400W |
7 | 102 | 80.75 | 2851 | 77.36 | 2731 | 400 | 535 | 3800*2350*2400 |
7200 |
| 8 | 116 | 71.55 | 2526 | 71.75 | 2533 | 400 | 535 | 3800*2350*2400 |
7200 |
|
| 10 | 145 | 69.43 | 2451 | 62.87 | 2219 | 400 | 535 | 3800*2350*2400 |
7200 |
|
| 1.FAD in accordance with ISO 1217 : 2009, Annex C: Absolute intake pressure 1 bar (a), cooling and air intake temperature 20℃ 2. Noise level as per ISO 2151 and the basic standard ISO 9614-2, operation at maximum operating pressure and maximum speed; tolerance: ± 3 dB(A) 3. N/A-Not Available 4.W-Water cooling |
||||||||||
