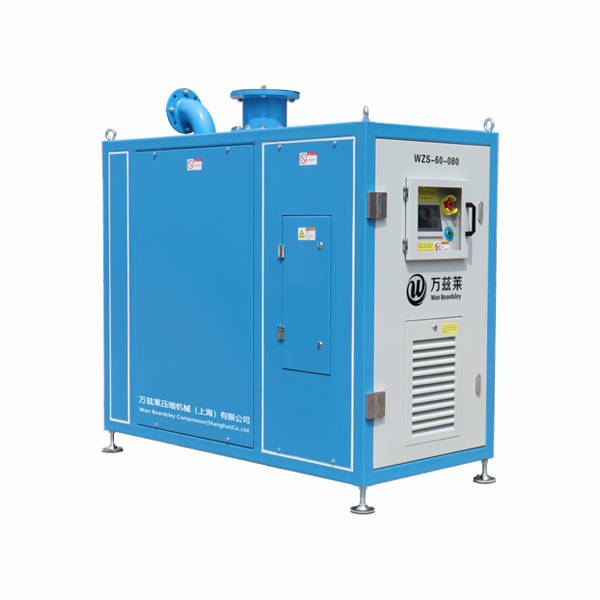

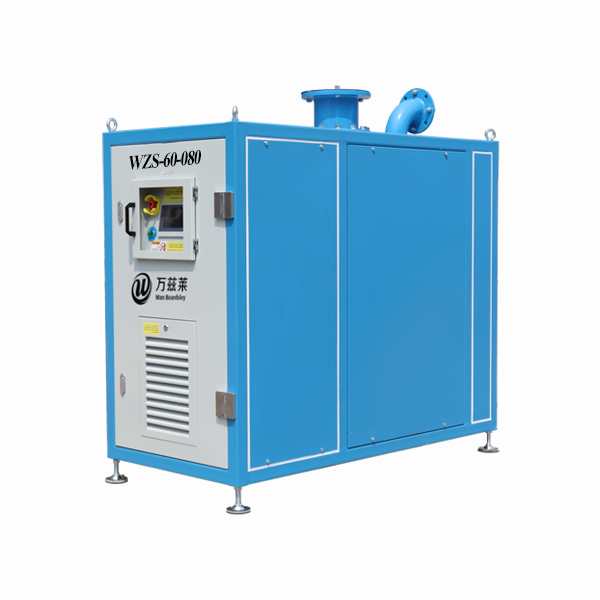

Oil-free Screw Blower

The main parameters:

Output power: 3.8-450kw

Air flow: 4-260m³/min

Chat With Us Send E-mail

 Download File

Details
Technical Parameters
Aapplication
Cases
Enquire

Details

Characteristic

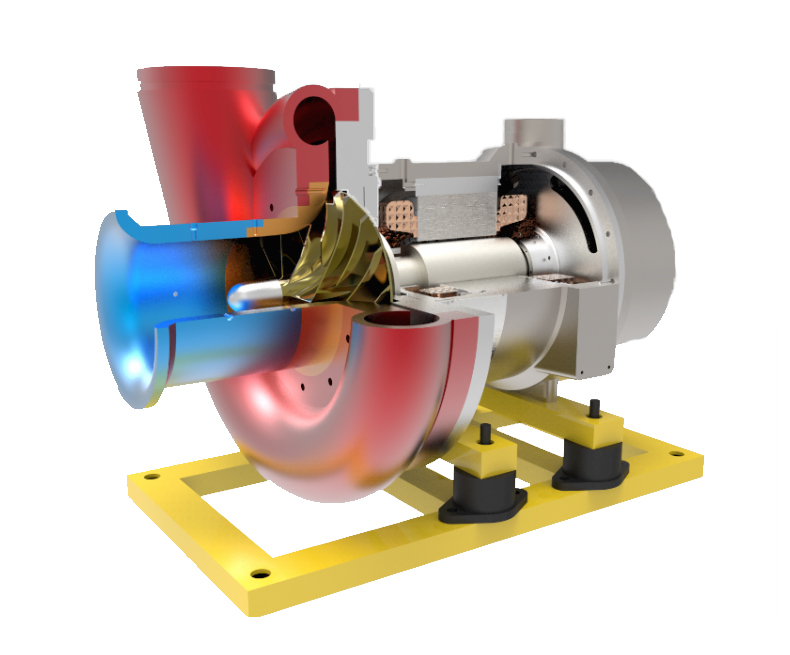

Air bearing centrifugal blower is a new concept blower developed byexperience of military aviation turbine mechanical design. lts basicprinciple is that the high-speed permanent magnet synchronous motorcontrolled by air suspension bearing and frequency converter directlydrives the coaxial centrifugal impeller to do work,creating a new era ofthe ultimate energy-saving and environment-friendly blower.

Simple/low cost

The use of air suspension bearing technology eliminates the need for lubricants and regular bearing changes, only regular filter changes are required.

Use & control

Motor revolutions, pressure, temperature and flow rate are displayed on the touch screen, which makes it easy to change and enter data.

Energy saving

(Energy saving effect can reach 45%) The compression part adopts high efficiency design and high efficiency motor, the comprehensive efficiency can reach more than 70%.

composition

Simple construction, small size, lightness and refinement, reduced floor space, easy to move and install.

low noise & non-vibration

Simple construction, small size, lightness and refinement, reduced floor space, easy to move and install.

Oil Free

The air foil bearings require no lubricant maintenance and are supplied with pure, oil-free air.

Technical Parameters

Model	Type	Power (KW)	Air Volume (m³/min)	Pressure (KPa)	Outlet (PN1.0)	Cooling 90° Elbow	Size(mm)			Weight (KG)
Model	Type	Power (KW)	Air Volume (m³/min)	Pressure (KPa)	Outlet (PN1.0)	Cooling 90° Elbow	W	L	H	Weight (KG)
WZS-3-060	Single stage	3.8	4	60	DN140	65	700	1500	1350	530
WZS-7.5-060	Single stage	7.5	7	60	DN140	65	700	1500	1350	530
WZS-7.5-080	Single stage	7.5	5.5	80	DN140	65	700	1500	1350	530
WZS-11-060	Single stage	1 1.3	11	60	DN140	65	700	1500	1350	530
WZS-11-080	Single stage	1 1.3	9	80	DN140	65	700	1500	1350	530
WZS-15-060	Single stage	15	14	60	DN150	65	700	1500	1350	530
WZS-15-080	Single stage	15	11	80	DN150	65	700	1500	1350	530
WZS-22-060	Single stage	22.5	20	60	DN150	65	700	1500	1350	530
WZS-22-080	Single stage	22.5	17	80	DN150	65	700	1500	1350	530
WZS-37-040	Single stage	37.5	48	40	DN150	65	700	1500	1350	530
WZS-37-060	Single stage		35	60	DN150	65	700	1500	1350	530
WZS-37-080	Single stage		28	80	DN150	65	700	1500	1350	530
WZS-55-040	Single stage	56	75	40	DN200	100	850	1750	1550	735
WZS-55-060	Single stage		51	60	DN200	100	850	1750	1550	735
WZS-55-080	Single stage		42	80	DN200	100	850	1750	1550	735
WZS-55-100	Single stage		34	100	DN200	100	850	1750	1550	735
WZS-75-060	Single stage	75	70	60	DN200	100	850	1750	1550	735
WZS-75-080	Single stage		55	80	DN200	100	850	1750	1550	735
WZS-75-100	Single stage		46	100	DN200	100	850	1750	1550	735
WZS-75-120	Single stage		39	120	DN200	100	850	1750	1550	735
WZS-90-060	Single stage	94	82	60	DN250	125	1000	1950	1700	1035
WZS-90-080	Single stage	94	70	80	DN250	125	1000	1950	1700	1035
WZS-110-040	Single stage	112.5	135	40	DN300	125	1000	1950	1700	1040
WZS-110-060	Single stage		105	60	DN300	125	1000	1950	1700	1040
WZS-110-080	Single stage		84	80	DN250	125	1000	1950	1700	1040
WZS-110-100	Single stage		69	100	DN250	125	1000	1950	1700	1040
WZS-110-120	Single stage		56	120	DN250	125	1000	1950	1700	1040
WZS-110-040	Single stage		100	40	DN250	125	1000	1950	1700	1040

WZS-150-040	Single stage		180	40	DN300	125	1000	1950	1700	1045
WZS-150-060	Single stage		140	60	DN300	125	1000	1950	1700	1045
WZS-150-080	Single stage	150	108	80	DN300	125	1000	1950	1700	1045
WZS-150-100	Single stage		88	100	DN250	125	1000	1950	1700	1045
WZS-150-120	Single stage		78	120	DN250	125	1000	1950	1700	1045
WZS-180-060	Single stage		160	60	DN300	125	1100	1950	1700	1080
WZS-180-080	Single stage	188	138	80	DN300	125	1100	1950	1700	1080
WZS-180-100	Single stage	188	108	100	DN300	125	1100	1950	1700	1080
WZS-180-120	Single stage		93	120	DN300	125	1100	1950	1700	1080
WZS-220-060	Two stage		210	60	DN400	125	1200	2300	2100	1600
WZS-220-080	Two stage	225	168	80	DN400	125	1200	2300	2100	1600
WZS-220-100	Two stage	225	138	100	DN400	125	1200	2300	2100	1600
WZS-220-120	Two stage		112	120	DN400	125	1200	2300	2100	1600
WZS-300-060	Two stage		280	60	DN500	125	1200	2300	2100	1750
WZS300-080	Two stage	300	216	80	DN400	125	1200	2300	2100	1700
WZS-300-100	Two stage	300	176	100	DN400	125	1200	2300	2100	1700
WZS-300-120	Two stage		152	120	DN400	125	1200	2300	2100	1700
WZS-370-060	Two stage		320	60	DN500	150	1750	3200	2100	2000
WZS-370-080	Two stage	375	270	80	DN500	150	1750	3200	2100	2000
WZS-370-100	Two stage		218	100	DN400	150	1750	3200	2100	2000
WZS-450-060	Two stage		420	60	DN600	150	1900	3500	2000	2500
WZS-450-080	Two stage	450	320	80	DN600	150	1900	3500	2000	2500
WZS-450-100	Two stage		260	100	DN500	150	1900	3500	2000	2500
