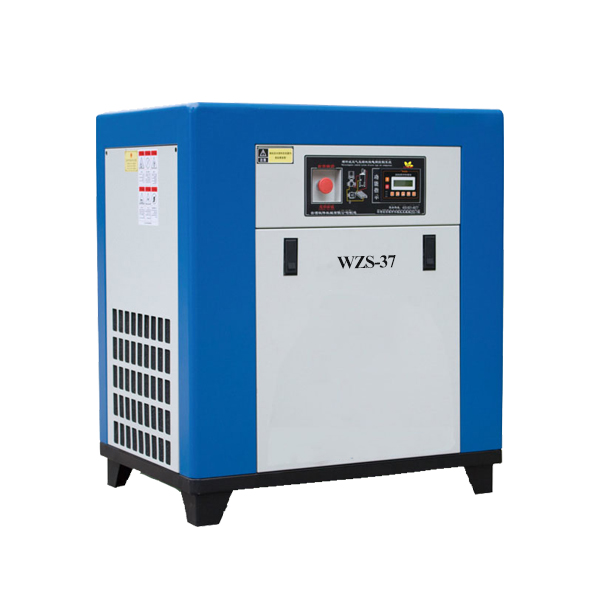

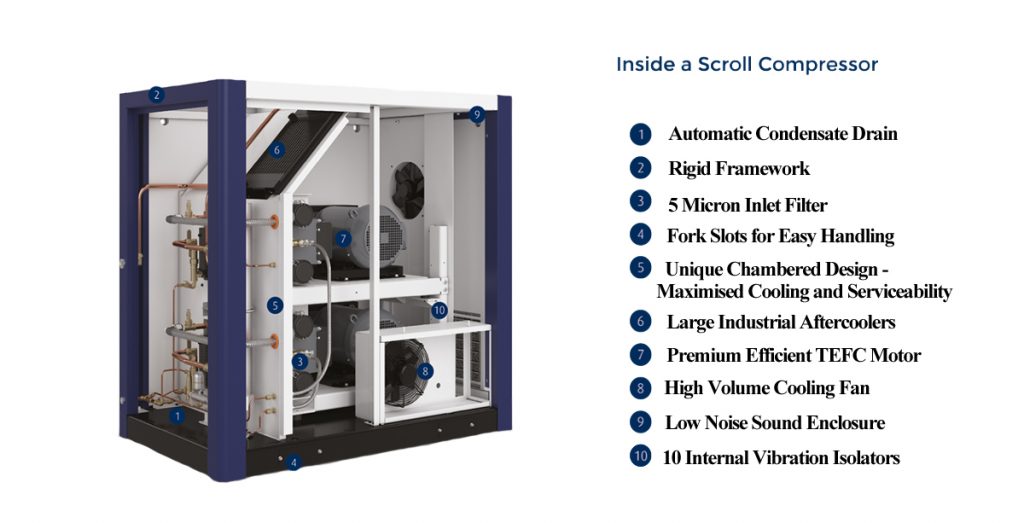

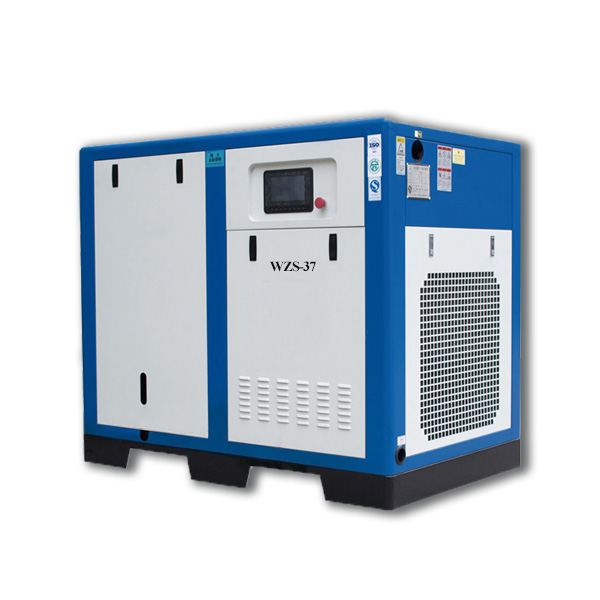

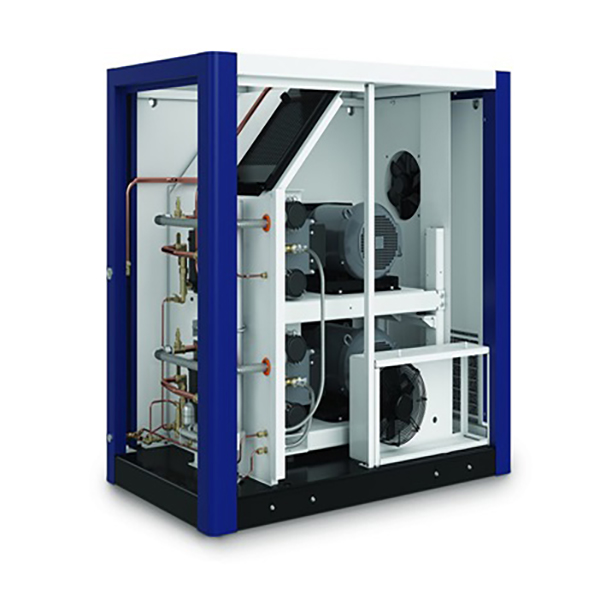

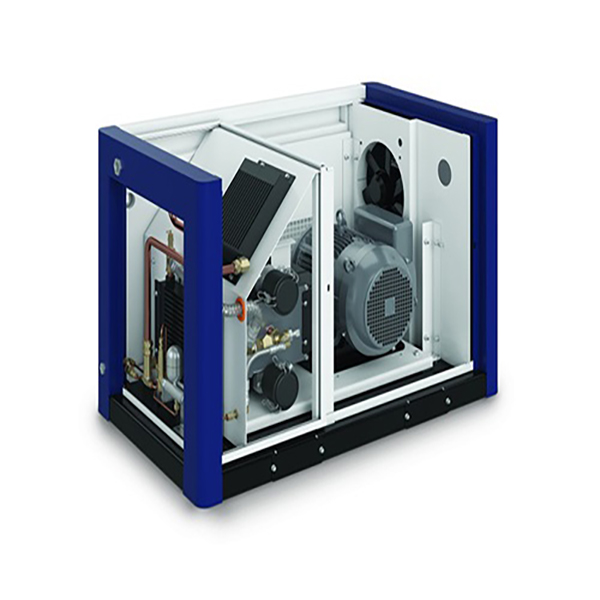

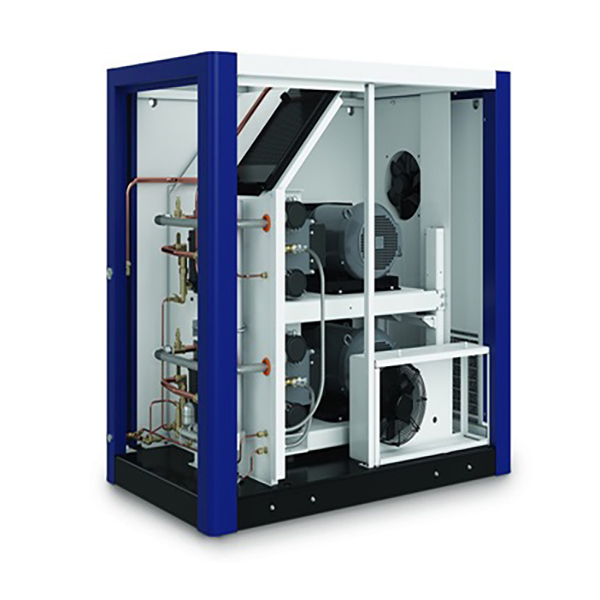

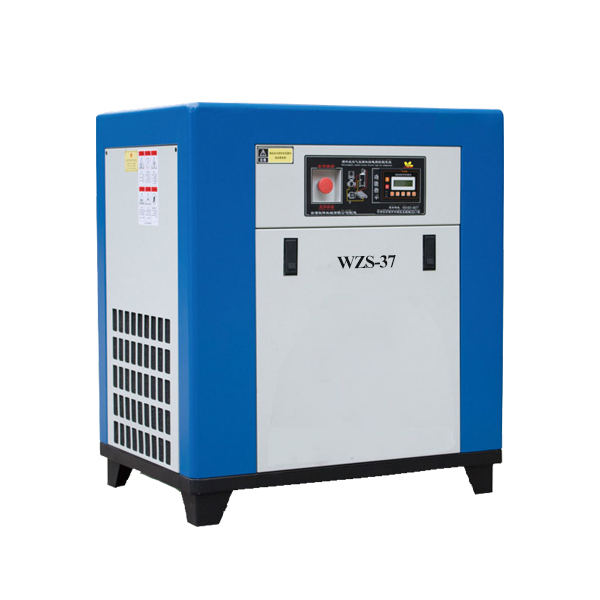

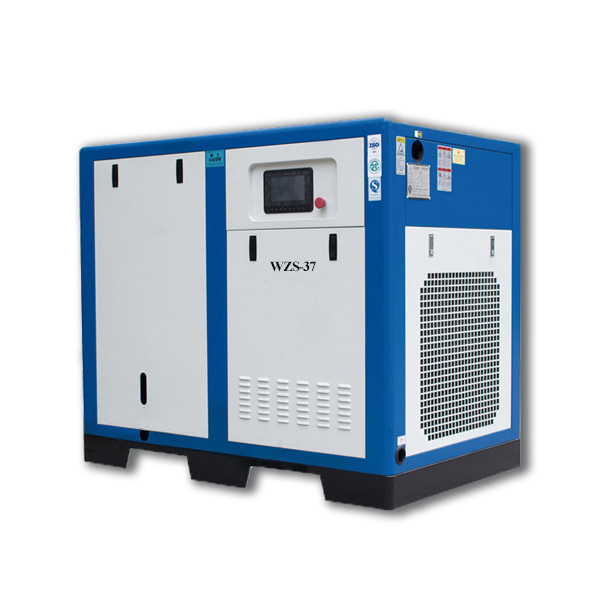

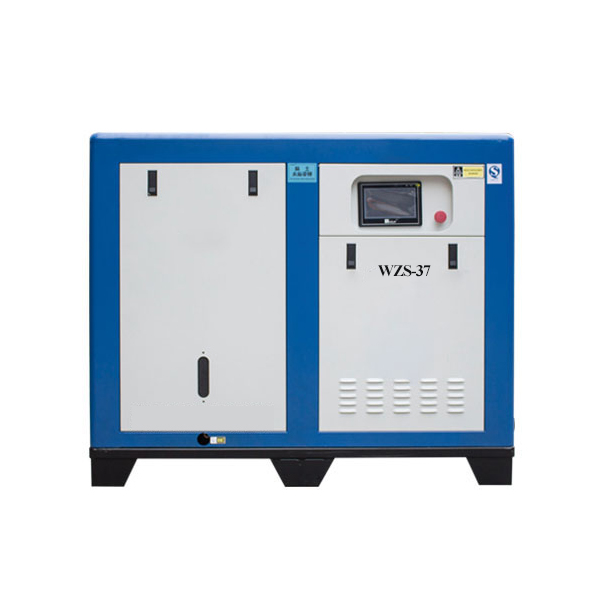

Oil-free Scroll Air Compressor

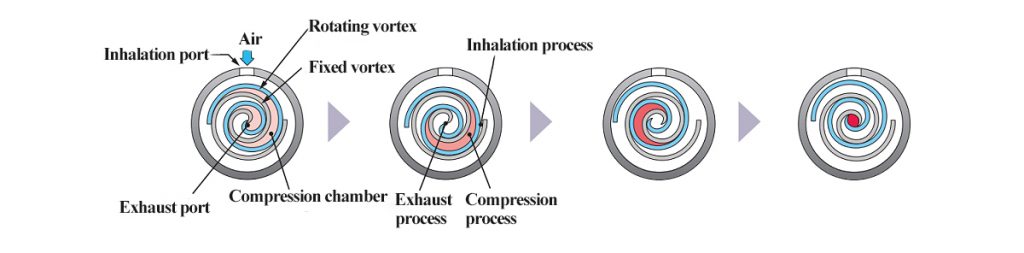

The working principle of oil-free scroll air compressor

1. Air is drawn in through the intake port on the outside of the fixed vortex.
2. The air that is enclosed in the compression space is compressed toward the center through the reduction of the compression space caused by the rotating motion.
3. The compression space is formed in the center as the smallest, and the air compressed to the highest limit is squeezed to the outside through the exhaust port in the center. 4. 1~3 (suction-compression-exhaust) movements are repeated.

Reliable - Stable

1. Neo involute tooth technology ensures the reliability of the scroll machine by solving the problem of thermal deformation of the scroll disc at high temperature without the cooling of lubricant.
2. Adopting high reliability bearings with surface treatment

Low vibration and low noise

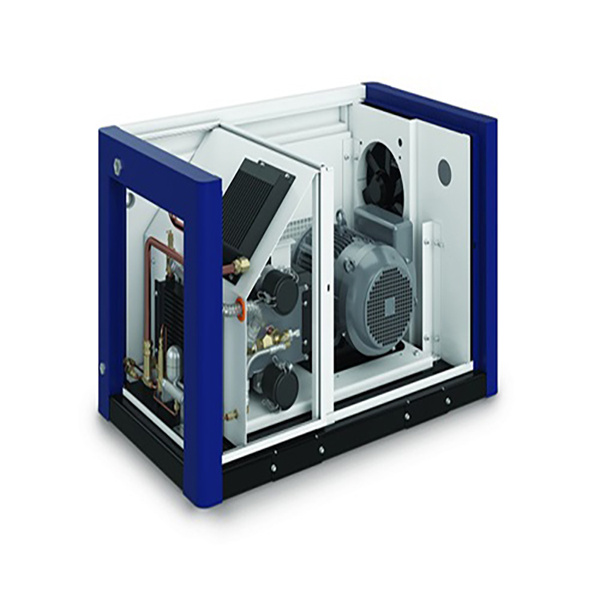

Low noise in a near-library-like environment is achieved by optimizing the design of vortex chassis machines. (For 3.7kW model, the noise level is only 47dB[A])

Easy maintenance

By adding a grease filling port, it is possible to fill the grease without disassembling the dynamic/stable volute of the scroll machine main unit. This greatly simplifies the maintenance process.

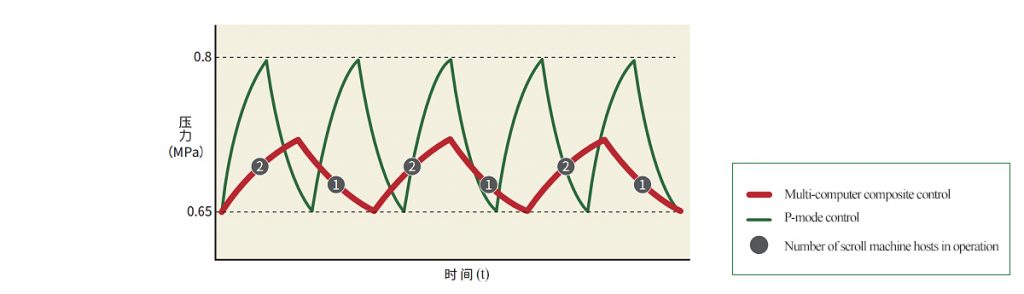

Energy-saving effect under multi-machine complex control

In addition to the Р mode control, the multi-combination control is added and can be switched between the two by simple operation on the operation panel. In the multi-combination control mode, the number of units of the main unit is automatically controlled according to the amount of air consumed, so that the compressor can operate optimally while maintaining the required pressure.

•

P-touch control:
In the same way as the pressure switch control, the compressor stops if the pressure reaches the maximum pressure. When the pressure drops to the recovery pressure, the compressor starts to run again.

Multi-computer control:
The compressor discharge pressure is automatically controlled near the desired pressure (control pressure). This avoids the power consumption required for the pressure to reach the maximum pressure, thus enabling energy-saving operation.

List of ingress protection:

SOLID OBJECT		MOISTURE
1	Protected against a solid object greater than 50mm such as a hand.	1	Protected against vertical falling drops of water. Limited ingress permitted.
2	Protected against a solid object greater than 12.5mm such as a finger.	2	Protected against vertical falling drops of water with enclosure tilted up to 15 degrees from the vertical.Limited ingress permitted.
3	Protected against a sold object greater than 2.5mm such as a screwdriver.	3	Protected against sprays of water up to 60 degrees from the vertical.Limited ingress permitted.
4	Protected against a solid object greater than 1mm such as a wire.	4	Protected against water splashes from all directions. Limited ingress permitted.
5	Dust protected.Limited ingress of dust permitted.Will not interfere with operation of the equipment.	5	Protected against jets of water.Limited ingress permitted.
6	Dust tight.No ingress of dust.	6	Protected against powerful jets of water.Limited ingress permitted.
		7	Watertight against the effects of immersion in water between 15cm and 1m for 30 minutes.
		8	Watertight against the effects of immersion in water under pressure for long periods.

Ingress Protection
IP54	Dust protected.Limited ingress of dust permitted.Will not interfere with operation of the equipment. Protected against water splashes from all directions. Limited ingress permitted.
