Cutting-edge core technology achieves the lowest cost of air compression

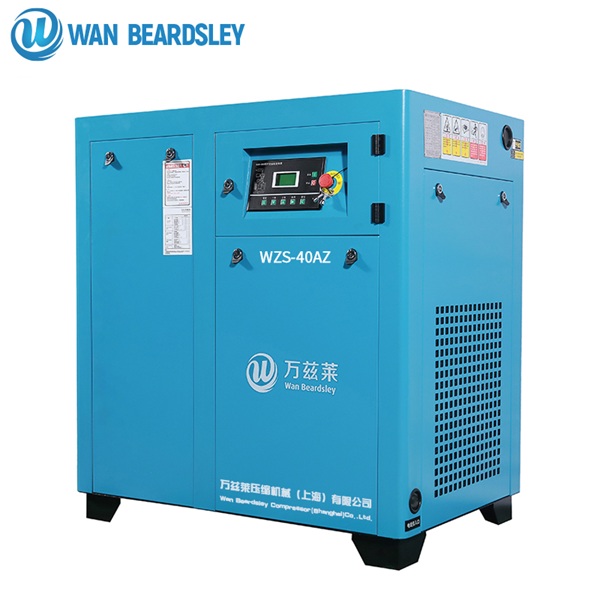

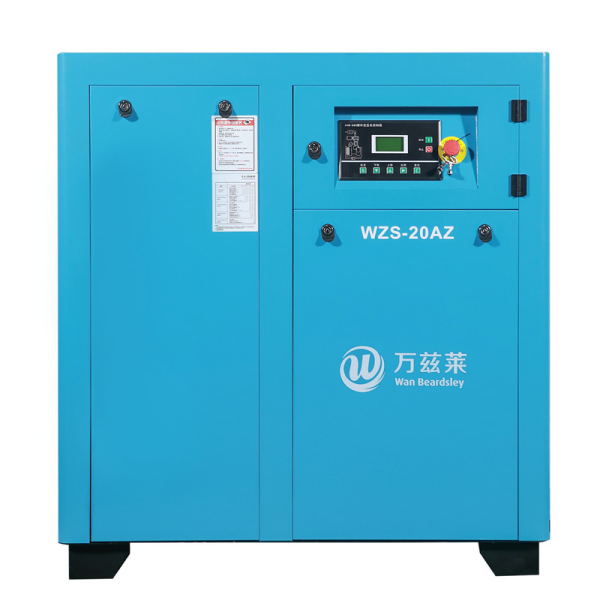

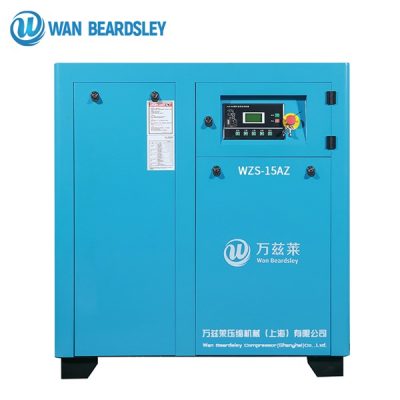

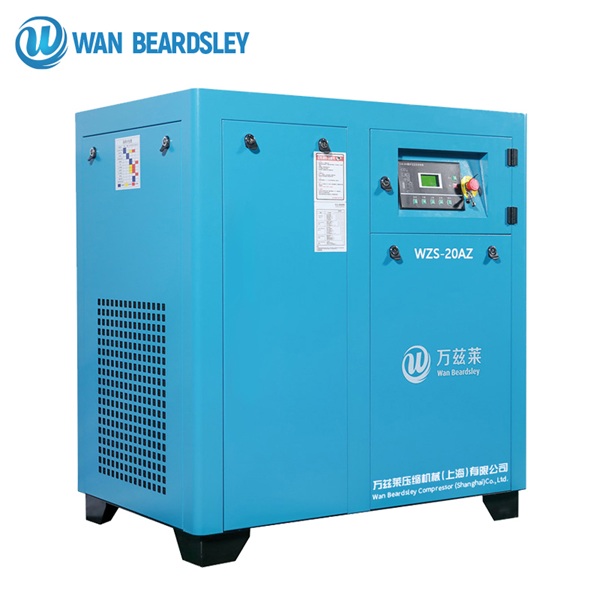

Fixed Speed Driven Screw Air Compressor (AZ)

The main parameters:

Output power: 7.5-400kw

Air flow: 0.8-72.0m3/min

Maximum working pressure: 1.25Mpa

Details

Low speed, big rotor

Direct driven larqe rotor, low speed host.High efficiency, low noise, low vibration and high reliability.It adopts cylinder and roller bearings triple design, with bearing life ≥ 100,000 hours.High-precision rotor guarantees high performance and reliability.

Stainless steel pipe

It is designed with the use of stainless steel pipe only, which has solid structure and high reliability, preventing the occurrence of rust in the pipeline effectively.

Coupling transmission

Motor aligns the rigid coupling of the host automatically, and adopts imported elastic coupling, damping vibrates at impact, to ensure that the transmission is totally effective, without energy loss.

Intelligent microcomputer control system

Operate easily, switch between Chinese and English, simplified Chinese character and the original complex form, air filter, oil filter, oil separator, lubricants, realize intelligent monitoring and management of time. Chain and remote monitoring functions are optional.

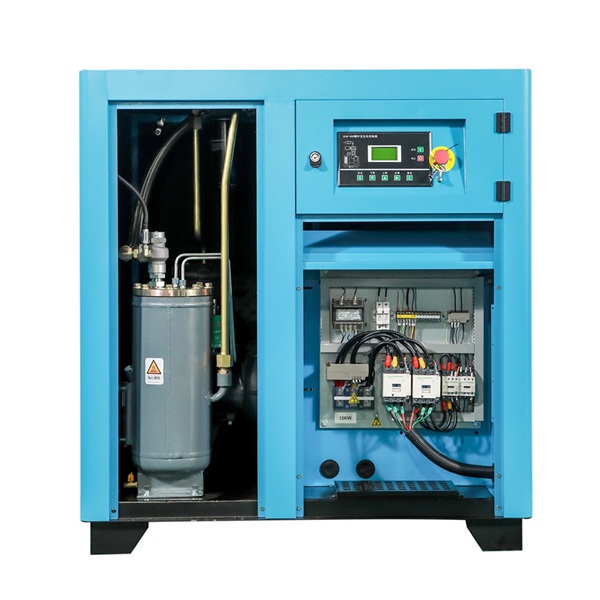

Electric control panel

Imported high-tech microcomputer controller adopts Schneider or Switzerland ABB original contactor, which has powerful fault diagnosis and protection functions: Default phase protection: when any one or two of the three-phase power breaks, it cut off the power automatically. Phase sequence protection: When there is an error of the phase sequence of the three-phase power, it can not be started. Over-temperature protection: when the exhaust gas temperature exceeds the set value, it cut off the power no-load automatically, to protect the no load state for several minutes, and then halts automatically. It starts automatically when the gas is required. Automatic unloading: unload first, and then halt, to avoid heavy-load start. Air volume regulation: automatic control of the gas displacement, saving energy.

Technical Parameters

WZS- 10AZ 15AZ 20AZ 25AZ 30AZ 50AZ 75AZ 100AZ 125AZ
Air flow/pressure (m³/min/Bar) 1.2/7.5 1.7/7.5 2.4/7.5 3.1/7.5 3.8/7.5 6.4/7.5 10.5/7.5 13.6/7.5 16.3/7.5
1.1/8.5 1.6/8.5 2.2/8.5 2.9/8.5 3.5/8.5 6.1/8.5 9.8/8.5 13.3/8.5 15.0/8.5
0.95/10.5 1.4/10.5 2.0/10.5 2.7/10.5 3.2/10.5 5.7/10.5 8.7/10.5 11.6/10.5 14.6/10.5
0.8/12.5 1.2/12.5 1.7/12.5 2.2/12.5 2.9/12.5 5.1/12.5 7.5/12.5 9.8/12.5 12.3/12.5
Motor Power (kw) 7.5 11 15 18.5 22 37 55 75 90
Horse power (HP) 10 15 20 25 30 50 75 100 125
Dimension Length(mm) 1000 1040 1040 1100 1400 1600 2050 2050 2150
Width (mm) 600 800 800 850 850 1000 1200 1200 1300
Height (mm) 1000 1180 1180 1300 1150 1370 1500 1500 1700
Noise dB(A) 66±2 70±2 70±2 70±2 71±2 74±2 74±2 75±2 75±2
Outlet diameter G3/4 G3/4 G3/4 G11/4 G11/4 G11/2 G2 G2 G2
Weight (kg) 240 400 410 590 620 840 1735 1850 1920



WZS- 150AZ/W 180AZ/W 220AZ/W 250AZ/W 300AZ/W 340AZ/W 400AZ/W 480AZ/W 540AZ/W
Air flow/pressure (m³/min/Bar) 20.3/7.5 24.0/7.5 27.0/7.5 32.5/7.5 40.0/7.5 43.5/7.5 50.8/7.5 60.0/7.5 72.0/7.5
19.0/8.5 23.0/8.5 26.5/8.5 31.0/8.5 36.8/8.5 42.0/8.5 48.2/8.5 57.0/8.5 68.0/8.5
17.0/10.5 20.0/10.5 22.5/10.5 28.0/10.5 32.2/10.5 38.8/10.5 42.6/10.5 50.0/10.5 60.5/10.5
14.6/12.5 18.0/12.5 20.1/12.5 25.1/12.5 28.5/12.5 34.6/12.5 39.8/12.5 45.0/12.5 50.5/12.5
Motor Power (kw) 110 132 160 185 220 250 300 350 400
Horse power (HP) 150 180 220 250 300 340 400 480 540
Dimension Length(mm) 2800 2800 2800 2800 2900 2900 4200 4200 4200
Width (mm) 1650 1650 1650 1650 1860 1860 2200 2200 2200
Height (mm) 1850 1850 1850 1850 2000 2000 2150 2150 2150
Noise dB(A) 75±2 75±2 75±2 78±2 78±2 78±2 80±2 82±2 83±2
Outlet diameter DN65 DN65 DN80 DN80 DN100 DN100 DN125 DN125 DN150
Weight (kg) 3030 3130 3210 3470 4500 4600 7000 7500 8100
