Cutting-edge core technology achieves the lowest cost of air compression

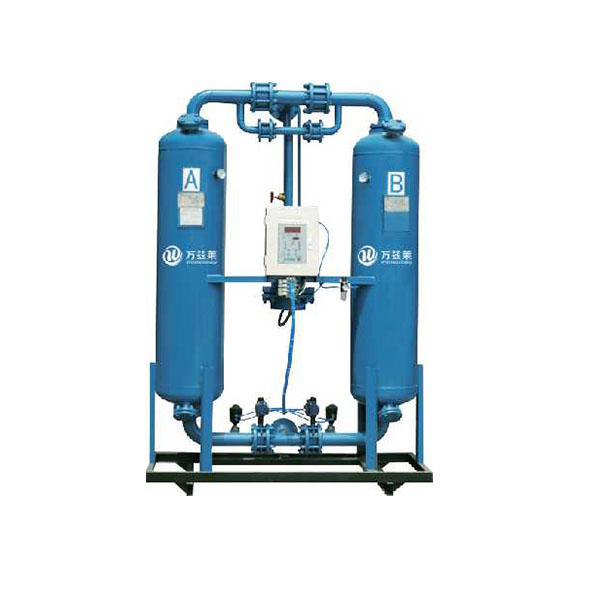

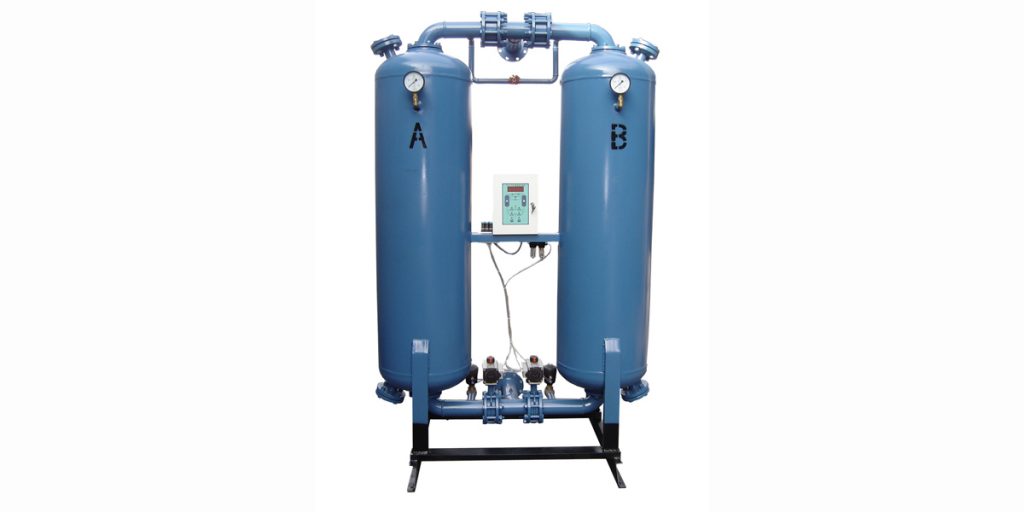

Heatless Regeneration Adsorption Dryer

The main parameters:

Output power: 0.5-54kw

Air flow: 1.6-160m3/min

Details

Operating principle

waste heat regeneration adsorptive dryer is air drying equipment which uses heat generated by energy conversion when air compressor is compressing air or compressed air under high temperature to directly heat drying agent to make it regenerate. There is no regeneration heater; so air consumption under regeneration is small, which then saves energy. This equipment uses PLC automatic control with simple operation, safety and reliability, small air consumpt ion by regeneration, stable dew points and being able to set work cycle according to requirement of dew points, etc.

Technical Features

Less regeneration gas consumption and low energy consumption;
The finished gas has stable dew point;
It is controlled by micro-computer and the operation state of the equipment can be real-time display on LCD and LED;
It has functions of diagnosis, alarming and automatic troubleshooting for several failures;
Reasonable structure and design makes the operation and maintenance easy;
It has the function of online parameter modification and protection;
The online dew point control function with the national patented technology can save energy at the uttermost (optional);

How it Workflow?

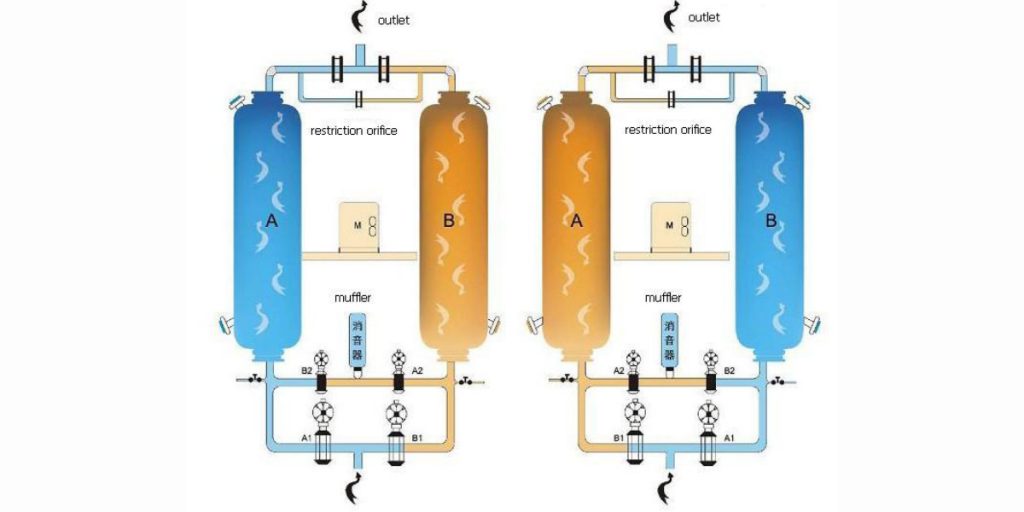

Heatless Desiccant Air Dryer is using micro holes of the desiccant/adsorbent, adsorbs the moisture of the compressed air; meanwhile desorbs it by pressure relief and adsorbs the extra-heat, which are known as PSA(Pressure Swing Adsorption) and TSA(Temperature Swing Adsorption). Currently, the equipment is making up of two towers,controlled by the Program Controller, the two towers work alternately,one is for adsorbing, the other is for desorbing, continually circulating the running.

Technical Parameters

Model Air handing capacity(Nm3/min) Heater power(kw) Air tube caliber Boundary dimensions Total quantity(kg)
Length Width Height
WZS-1WXF 1.6 0.5 ZG1 850 360 1540 120
WZS-2WXF 2.5 1 ZG1 850 360 1645 280
WZS-3WXF 3.8 1.2 ZG1.5 1010 460 1570 320
WZS-6WXF 6.8 2.1 ZG1.5 1010 460 1940 480
WZS-8WXF 8.5 3 ZG2 1200 500 1940 540
WZS-10WXF 11.5 4 ZG2 1200 500 2200 650
WZS-13WXF 13.5 4 ZG2 1300 500 2200 690
WZS-15WXF 17 5 ZG65 1350 580 2330 780
WZS-20WXF 23 6 ZG80 1450 600 2340 920
WZS-25WXF 27 8 ZG80 1700 930 2570 1050
WZS-30WXF 34 10 ZG80 1750 960 2626 1200
WZS-40WXF 45 12 ZG100 1850 1060 2646 1530
WZS-50WXF 55 15 ZG100 1900 1120 2730 1750
WZS-60WXF 65 18 ZG125 2160 1240 2784 2230
WZS-80WXF 87 27 ZG125 2416 1440 2827 2710
WZS-100WXF 110 36 ZG150 2560 1560 2827 4173
WZS-160WXF 160 54 ZG200 2760 1760 3136 6479
